Close to 70% of field techs now favor compression fittings over soldering for hard-to-reach or gas line jobs. This shift highlights the major need for reliable, leak-resistant connections on current job sites.
Best Place To Buy 1/4 Compression Coupling
This streamlined guide delves into Compression Union Brass and other compression-style fittings commonly seen in plumbing, HVAC, and instrumentation work in the United States. It provides practical tips on picking the proper 1/4 compression fitting, installing brass unions, and diagnosing leak issues. It also addresses material compatibility.
Whether you’re a licensed plumber, heating-and-cooling technician, instrumentation specialist, or a hands-on DIYer, this guide was built for you. It focuses on practical job scenarios: ease of installation, reusability, and how brass unions work when soldering is not feasible. We’ll contrast 1/4 inch compression fittings and couplers, highlighting their top applications.
For fittings and parts, InstallationPartsSupply.com is a go-to supplier for brass compression union components, nuts, and ferrules. They offer properly matched components without delay. The next sections cover size selection, pressure limits, and setup tips to avoid leaks and reduce callbacks.
Top Takeaways
- Compression Union Brass offers a heat-free, reusable join for multiple tubing materials.
- Brass compression union fittings are ideal for confined spaces and service repairs.
- 1/4 compression fitting and 1/4 inch compression fitting sizes are widely used in plumbing and instrumentation systems.
- InstallationPartsSupply.com stocks nuts, ferrules, and union bodies for quick replacement and matching.
- Choosing and installing correctly reduces leaks, with detailed steps provided later in the guide.

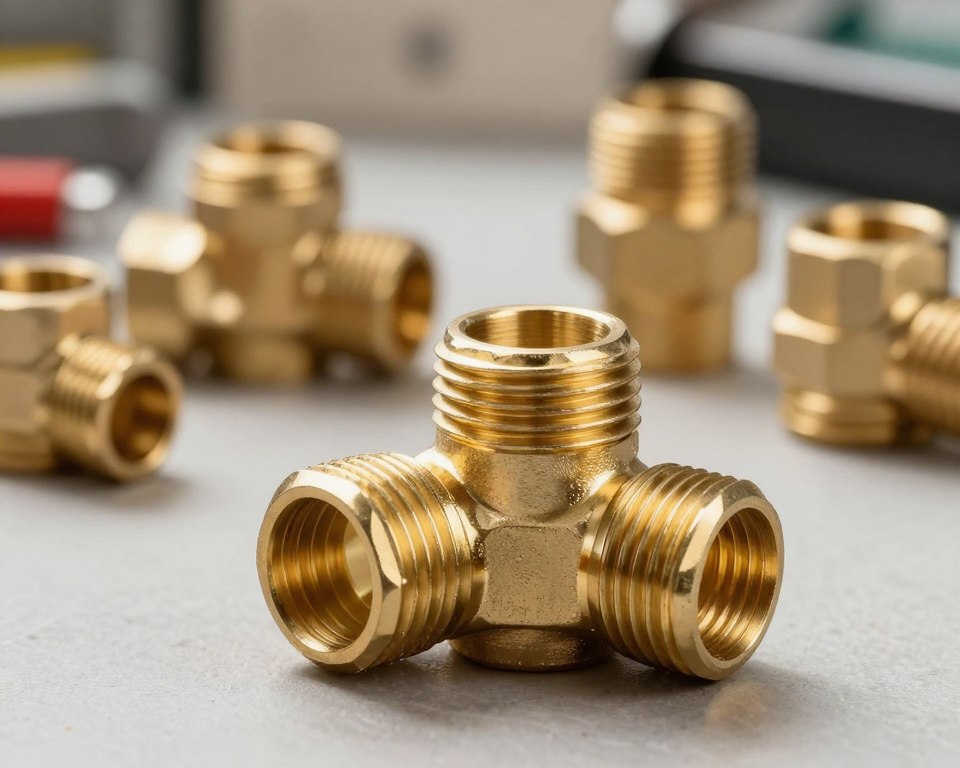

Brass Compression Union Fittings Explained And How They Work
A brass compression union fitting links two tubing runs with no soldering. It features a body, a compression nut, and ferrules for a secure seal. The 1/4compression fitting is often used in instrumentation, refrigeration, and plumbing service.
Definition And Key Components
The brass compression union consists of three core parts. The union body takes line on either side. The nut threads onto the body, pressing the olive into place. The ferrule forms the seal by compressing onto the tube’s OD.
Compression unions enable the linking of two tube ends inline without soldering. Each end has its separate ferrule and nut, making rapid assembly of varied tube sections during field service or job-site repairs.
Principle Of Operation
To put together, push the tube into the fitting body and snug the nut. When you tighten moves the nut, which drives the ferrule into the body’s angled bore. This motion converts to radial compression around the line.
This radial squeeze produces a line-contact seal between the olive and tubing. A well-made fit delivers a metal-to-metal or metal-to-plastic seal depending on materials. Wrong tightening can distort the ferrule or fail to seat, undermining the connection.
Materials And Compatibility
Brass union fittings are valued for their corrosion resistance and malleability. They perform well with copper tubing and many potable-water systems. They also work with low-pressure gas lines when installed with gas-grade PTFE tape and remain accessible.
For higher-pressure systems or harsh fluids, stainless steel compression fittings are usually preferred. Plastic compression connectors are best suited for low-pressure water jobs. The 1/4compression fitting is available in brass and stainless steel to match different tube ODs, system pressures, and chemical requirements.
Compression Union Brass: Benefits, Common Uses, And Where It Fits
Compression Union Brass unions bring together rugged strength and practicality, making them ideal for plumbing and instrumentation work. They can be installed rapidly, without the need for a torch, making them ideal for compact or fire-risk spaces. The 1/4 compression union and smaller 1/4compression fittings are favored for their small-footprint, reliable joins.
Benefits Of Brass Unions
Setup is fast and simple with basic tools. No heat source or soldering is needed, reducing job time and safety risks. Many brass compression union nuts and bodies are reusable in many cases, cutting costs on repeat service calls. Ferrules may require replacement after several reassemblies.
Brass stands up to corrosion and has slight give under stress, creating a tight seal with copper tubing. This minimizes galvanic issues when used with copper or select stainless parts. Makers list many brass compression union fittings for generous temp and pressure ranges, fit for both domestic and light-duty industrial work.
Typical Applications In The United States
In residential plumbing, brass compression union fittings are frequent under basins, at stop valves, and on hot water heater connections. The 1/4 compression coupling is frequently used in beverage equipment, ice-making equipment, and small-diameter water lines that benefit from easy service access.
Gas distribution with reachable copper runs sometimes relies on brass compression unions for checks and simple take-apart. Heating/cooling and refrigeration pros rely on brass unions for service runs that must be taken apart and put back together during service.
Instrumentation, lab, and industrial panels use small 1/4compression fittings for sampling, sensing, and pneumatic runs. These environments prefer the 1/4 compression union for leak-tight joints and quick replacement.
Why Choose Unions Instead Of Other Fittings
Compression unions reduce labor time compared to solder joints. Without a heat source, work can continue in heat-restricted areas or where immediate return-to-service is needed. A Compression Union Brass union allows repositioning and later breakdown for repairs and changes.
Soldered connections remain more compact and can cost less in raw materials. Union fittings offer flexibility and field-service advantages, making them the top choice when access, speed, and reuse matter. For many installers, a 1/4 compression coupling offers the right balance between compact size and dependable performance.
Choosing The Right 1/4 Inch Compression Fitting And Related Sizes
Picking the correct fitting involves grasping the terminology and doing a fast parts check. It’s essential to know if “1/4” refers to the tube outside diameter or the pipe-thread size before making a purchase. Many catalogs list multiple SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Understanding common terminology
It’s important to get comfortable with the basic components: the compression nut, ferrule, union body, and coupler. The compression nut compresses the olive against the line and the taper. A union body joins two connections, while a coupler fitting links two tubing ends in-line. Always follow the manufacturer’s wording on product pages for accurate meanings.
Matching tubing OD, ferrule, and thread pitch
The tubing OD must match the ferrule dimensions perfectly. Ferrule shape and body taper can change by brand. Using a ferrule from one brand with a fitting body from another can create seepage. Ensure that the thread style and pitch match for mating parts. Know the difference between NPT tapered threads and straight, parallel threads that use sealing methods or O-rings.
Material notes and soft-tubing considerations
For PTFE or plastic tubing, verify the ferrule style and whether a tube insert is required to prevent crushing. Brass ferrules bite differently than stainless ferrules. If you need higher resilience to harsh fluids or high heat, consider stainless alternatives over standard Compression Union Brass.
Pressure and temperature notes
Pressure specs vary based on material and fitting size. Brass and compact fittings, suitable for instrumentation, will have lower pressure ratings than larger stainless steel fittings. Always check the manufacturer’s pressure/temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Practical checklist
- Confirm whether “1/4” = tubing OD or pipe thread size.
- Pair tubing OD to ferrule size and brand geometry.
- Confirm thread type and pitch; note NPT vs straight threads.
- Review pressure and temperature ratings for Compression Union Brass or other options.
- For PTFE or plastic, confirm need for tube inserts or secondary seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4 inch compression fitting | Pneumatic, instrumentation | Check whether 1/4 refers to OD or thread | Brass is typical; stainless for high PSI |
| 1/4compression fitting (compact) | Miniature lines, beverage systems | Match ferrule geometry | Certain brands use proprietary ferrules |
| 1/4compression coupler | Straight-line tube joining | Verify tube OD and internal bore | Plastic tubing may need inserts |
| 1/4 compression coupling (panel) | Panel joins and instrumentation | Confirm pitch and sealing method | Compression Union Brass common choice |
| Compression Union Brass | Inline unions, mid-pressure setups | Maker pressure/temperature charts | Not ideal for very high PSI or harsh chemicals |
Best Installation Practices For Brass Compression Unions
Ensuring a Brass compression union’s service life requires good installation practices. Begin by properly prepping the tubing and components before any tightening. This up-front attention is key in avoiding seepage and failures later.
Preparing tubing for a leak-tight seal
Use a good tube cutter to cut tubing clean and square. Remove any burrs or nicks or surface marks that could cause leaks. It’s also important to check the tubing’s outside diameter for being round. Out-of-round tubing, common in coiled tubing, can reduce proper seating.
Next, slide the nut and ferrule (olive) onto the tube the right way. Always use fresh ferrules, as they help ensure a reliable seal, even on copper tubing. For soft plastic tubing, consider using tubing inserts or reinforced ferrules to prevent wall collapse.
Proper tightening technique
Begin by hand-tightening the compression nut. Then, follow the manufacturer’s recommended turn count. This approach helps create the right seal without tightening too much.
It’s a common misconception that more tight is always better. Under-tightening can lead to a leaking seal. Tightening too much, on the other hand, can harm the sealing surfaces, threading, or create leaks. After initial tightening, bring to pressure the system and tighten in small steps if slight weeping appear.
Using two wrenches and avoiding pipe twist
Stabilize the fitting body with one wrench while turning the compression nut with another. This method avoids tubing rotation and reduces stress on joints.
In tight spaces, ensure the fitting body is held and properly aligned before final snugging. This prevents thread damage and ensures the ferrule installation is correct. Proper technique protects the fitting from deformation and helps guarantee a good seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Cut square, deburr, and inspect OD | Prevents leak channels and ensures even compression |
| 2 | Slide nut and new ferrule onto tubing | Right ferrule setup makes sealing predictable |
| 3 | Finger-tighten, then turn per spec | Builds the line-contact seal without harm |
| 4 | Use two wrenches: hold the body, turn the nut | Prevents tube twist and reduces mechanical stress |
| 5 | Pressure test and adjust incrementally | Stops weeping without over-tightening |
Troubleshooting Leaks And Maintaining Compression Unions
This section covers typical leak causes and straightforward fixes for Compression Union Brass connections. It helps you with assessing problems, deciding on snugging, part replacement, or sealing method changes. The aim is to ensure a reliable, lasting seal for 1/4 compression sizes and other sizes.
How Tight Should A Compression Fitting Be?
Ensure a tight seal without deforming the line or olives by tightening the nut just enough. Many manufacturers recommend a number of turns past hand-tight over torque values. For copper lines, stop tightening when you feel resistance and apply only a few quarter-turns with a wrench.
Excessive tightening can distort ferrules, score tubing, and make difficult later disassembly. Too much compression is a frequent cause of seepage and wear to thread surfaces on Compression Union Brass parts.
How To Fix A Leaking Compression Fitting
Try the simplest step: hold the body steady and tighten the nut a slight amount with a second spanner. This often resolves small leaks without full breakdown.
If the leak continues, break down the joint. Remove the nut and ferrule, then check the tubing and ferrule for damage. Replace any marred ferrule before rebuilding.
Apply gas-grade PTFE tape only for gas service when the manufacturer approves. Do not lubricate the ferrule unless directed by the maker. For PTFE tubing showing creep, use a fitting with an internal o-ring or secondary seal to prevent leaks.
Reassemble with a new ferrule and nut when necessary. Hand-tighten, then finish with the recommended number of turns. Test the joint under working pressure and watch for slow seepage.
When To Replace Ferrules And Fittings
Replace ferrules showing deformation, gouging, or needing extra turns to seal. Do not reuse ferrules on copper pipes for trusted lasting performance.
Replace the union body when internal tapers, bores, or threads are damaged, or when galling damage has occurred on stainless steel components. Source replacement ferrules, nuts, and bodies that match the original brand when possible to avoid mismatch problems.
Ferrule Types, Tubing Selection, And Material Considerations
Understanding ferrule types and tubing selection is key to reliable seals. This guide compares common ferrule profiles and tubing materials. It helps installers and engineers prevent leaks and minimize rework.
One-piece vs two-piece ferrules
One-piece olives are basic. A single part grips the tubing, creating a seal. They work well on soft-wall tubing like brass or some plastic tubing. This design also reduces inventory complexity.
Two-piece ferrule systems split the load into a leading and a rotating rear ferrule. The rear ferrule isolates torque from the sealing face. This design increases long-term reliability for stainless tubing and vibration-heavy runs. It’s popular where galling risk and uneven compression are concerns.
Symmetrical versus asymmetrical ferrules
Symmetrical olives have a double-cone profile and install either way. This reduces assembly time when volume matters. They can shift off-axis more easily, which may lead to small weeps on very hard plastics.
An asymmetrical ferrule has a tapered profile and must be oriented properly. It gives better axial positioning and resists off-axis movement. This makes it the preferred choice for precision systems where alignment and consistent sealing matter.
Choosing tubing: metal vs plastic and PTFE notes
Metal tube like copper tube or stainless tubing offers rigid walls that hold uniform contact with the ferrule. Use square, clean-cut ends to keep seal strength with 1/4compression sizes and larger sizes.
Stiff plastics like PEEK and PTFE alternatives can work when they are firm. Soft plastics such as urethane and vinyl are poor choices without support. Tubing inserts help when the wall is overly flexible.
PTFE lines brings great chemical resistance and flexibility, but it tends to creep under compression and heat. This cold-flow can lead to leaks over time. Use fittings designed for PTFE, redundant seals, or support inserts to reduce creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, low inventory | Hard tubing, vibration-heavy runs | Fast assembly, reversible | Axial alignment, precision work |
| Installation sensitivity | Low | Medium (orientation helps sealing) | Low | High (must be oriented) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited unless supported | Better with support and O-rings | Possible with reinforcement | Preferred when alignment matters |
| Typical use with 1/4compression fittings | Common in general plumbing | Often chosen for instrumentation and gas lines | Used for high-volume assembly | Used in precision and high-tech applications |
Pair ferrule geometry to tubing stiffness, system pressure, and assembly throughput. For PTFE tubing, specify fittings that include backup sealing or use tubing inserts. Consult tubing and fitting manufacturers for final checks before installing mission-critical runs.
Comparison: Compression Unions Vs Soldering And Other Joining Methods
Selecting the right joining method is important for safety considerations, maintenance access, cost, and visual finish. Compression unions are great for confined areas and near combustible materials due to their no-flame installation. Soldering, on the other hand, produces compact joints that many plumbers prefer for open runs and permanent installs.
When to choose compression unions instead of soldering
Opt for compression unions when flame use is unsafe or restricted. A 1/4 compression union or a 1/4 compression coupling allows for rapid fixes without taking large systems offline. Compression Union Brass parts enable quick service access and repeated breakdown for checks or changes.
Trade-offs vs soldering
Solder joints are often less expensive per joint and sit nearer to the pipe for cleaner sightlines. Soldering can deliver long-lasting, vibration-resistant connections for many long-term installs. Compression unions, while more bulky and higher cost per fitting, are attractive when changes, field changes, or spark-free methods are priorities.
Mixing components and brand compatibility
Do not mix ferrules, nuts, and bodies from different brands unless the supplier states compatibility. Differences in taper angle, ferrule profile length, and thread thread pitch can compromise the seal. For critical or high-purity lines, use manufacturer-specified ferrules and parts designed to resist galling and meet clean standards.
Quick checklist
- If space is limited or torch work is unsafe, pick compression-style fittings.
- For long visible runs prioritizing appearance and permanent joints, consider soldering.
- Keep matched 1/4 compression union parts by manufacturer when using 1/4 compression coupling assemblies.
- When maintenance access matters, Compression Union Brass units give reliable reuse and easy replacement.
Final Thoughts
Compression Union Brass fittings serve as a dependable alternative for solder in various fields like plumbing, HVAC, gas, and instrumentation. When properly chosen and installed, they ensure leak-free performance. This is achieved without the need for a torch or special tools.
Following installation basics is critical. Ensure tubing is cut straight and select the correct ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening. This step is crucial to avoid tubing twist and to maintain the ferrule seal integrity.
For handling minor leaks, a simple tightening often is enough. Replace ferrules that show signs of damage or work-hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s integrity. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on size charts, matching ferrules and unions, and locating the right Compression Union Brass components for your project.
